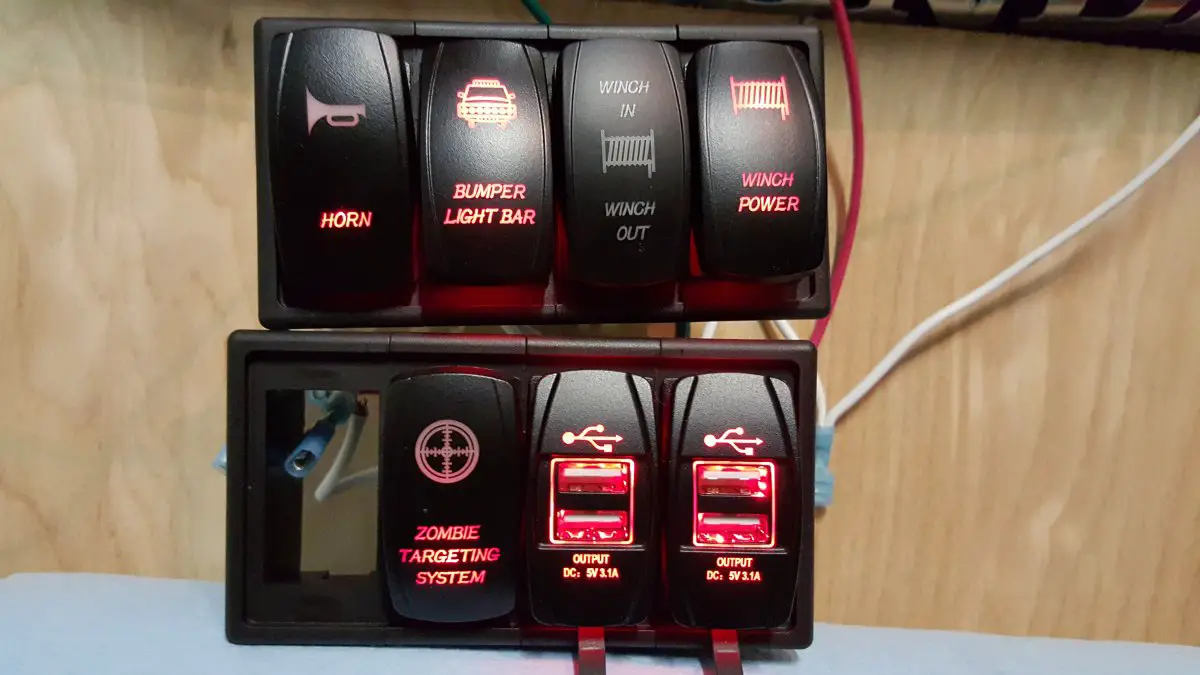

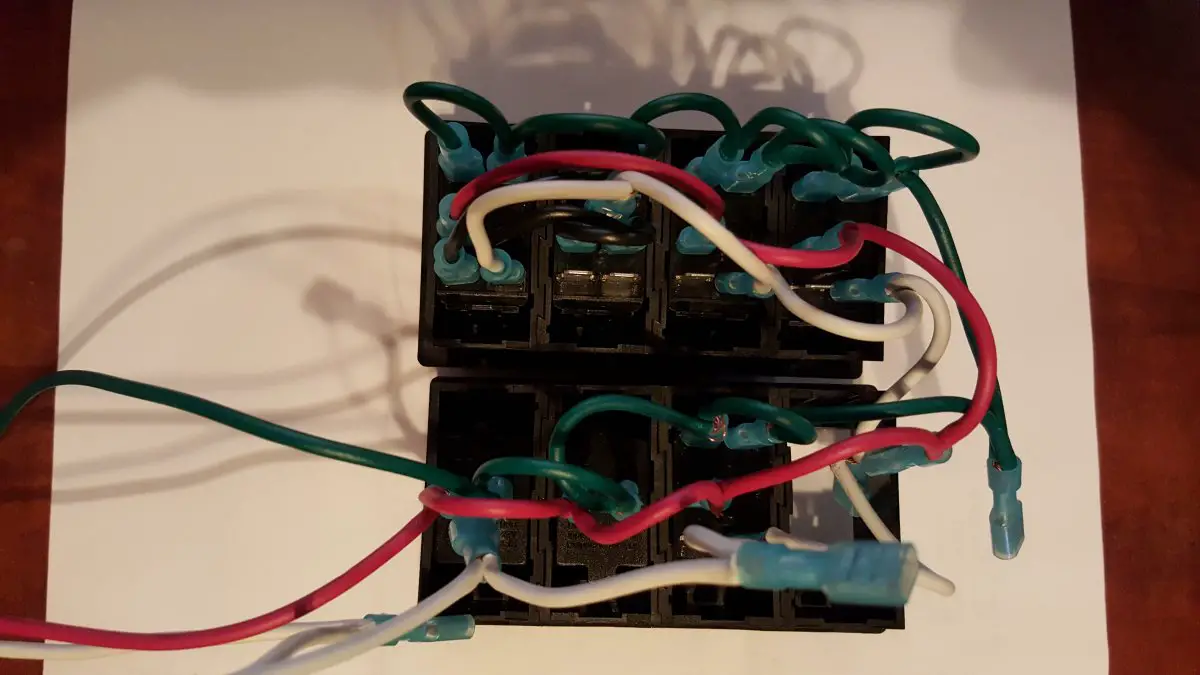

jACKAL THANKS YES I HAVE WIRED MY PLATE THE SAME AS ABOVE. ONE QUESTON I HAVE IS ON THE 7 PIN SWITCH YOU HAVE IN INK PEN DRAWN ON SWITCH CARD INDICATING YOU WERE POSSIBLY JUMPING #3 AND # 6 AND #1 AND #4? IS THAT CORRECT? LAST QUESTION I DONT UNDERSTAND THE CARD WHEN IT STATES CONNECT #2 (+) FROM YOUR SOURCE AND #5 SAYS SAME THING DO I JUMP THOSE OR WHY IS THERE TWO. ALSO CONNECT #6 TO YOUR RELAY OR ACC.( PUSH DOWN SECOND APPLICATIONS) #3, 4, 6 ALL STATE THIS AND #1 HAS SAME EXCEPT ( PUSH UP APPLICATION). COULD YOU ELABORATE ON THIS LANGUAGE AS THERE ARE NOT PICS THAT I HAVE SEEN ON YOUR BUILD OF WIRING ONCE THE PDM IS ATTACHED. THANKS AGAIN FOR ALL YOUR HELP.

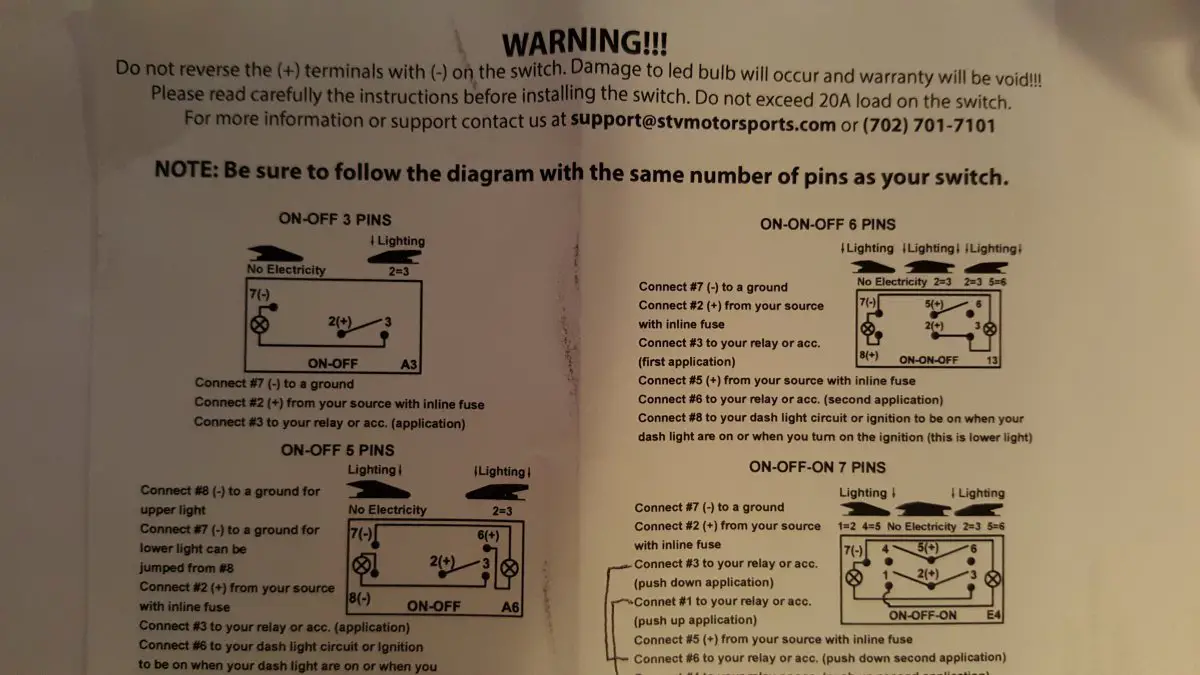

OK back to basic if you can't understand the pin out card that should have came with your switches,
There is 8 possible spades for the back of the rockers they are universally numbered as such:
8 7
1 4
2 5
3 6
as in top of picture here:
EACH SPADE DOES A DIFFERENT THING DEPENDING ON WHO MAKES IT!!! OTTRW is not the same as STV
This is ONLY for STV Switches here:

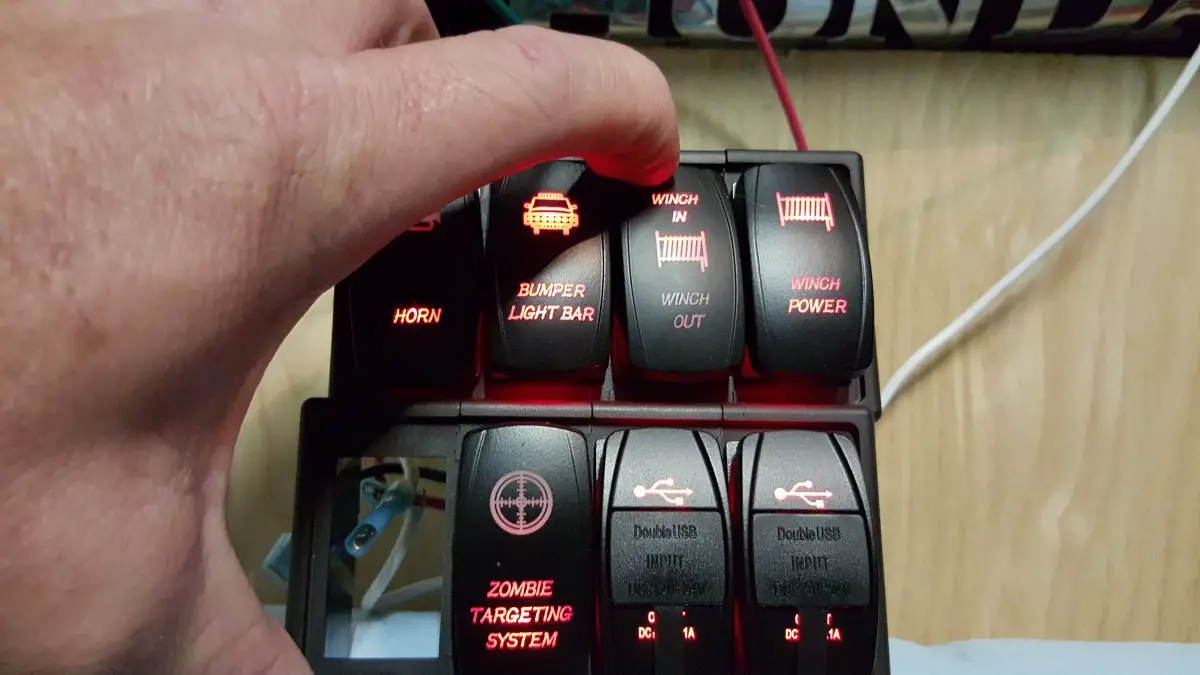

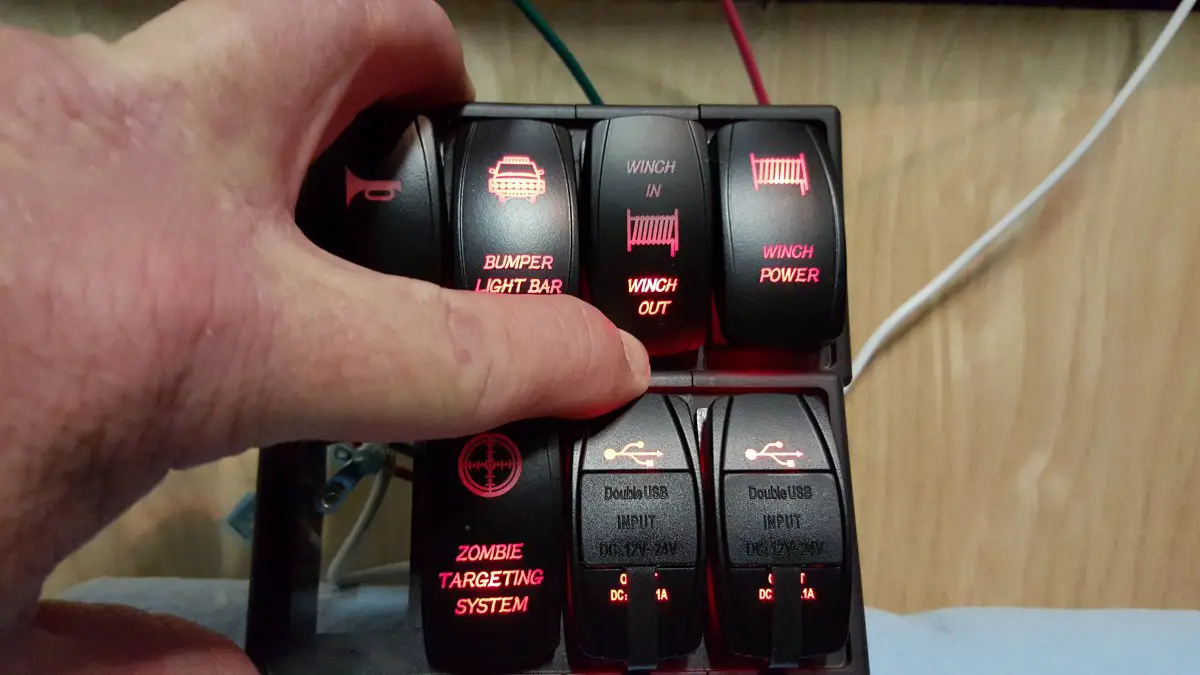

For a 7 Pin Rocker Switch from STV that is a momentary on UP and momentary on DOWN to run a winch in or out and back lighting you would wire it as follows:
Spade #7 connect to ground wire. (There is no #8 position spade)
Spade #2 & Spade #5 are for power source in - either from PDM or key on power source (Honda Black wire with white stripe) These can be jumped together, one wire in then jump to the other makes no different which one both have to have power in.
Spade #1 & Spade #4 are to Relay or accessory powered on when rocker is pressed UP (typically only need one of these, unless you are rocking double winches on same bumper)
Spade #3 & Spade #6 are to Relay or accessory powered on when rocker is pressed DOWN (typically only need one of these, unless you are rocking double winches on same bumper)
This type of rocker only lights up when you are holding the rocker up or down.
For a 5 Pin Rocker Switch from STV that is a ON / Off and back lighting you would wire it as follows:
Spade #7 & Spade #8 connect to ground wire. These can be jumped together, one wire in then jump to the other makes no different which one both have to go to a ground.
Spade #2 for power source in - either from PDM or key on power source (Honda Black wire with white stripe) These can be jumped together, one wire in then jump to the other makes no different which one both have to have power in.
Spade #6 is for Light source power in (Honda Brown wire) Switch will be backlit when lights are turned on only.
Spade #3 to Relay or accessory powered on when rocker is flipped ON or Up
There is no spade for positions #1, #4, #5 on the 5 terminal rocker switch.
